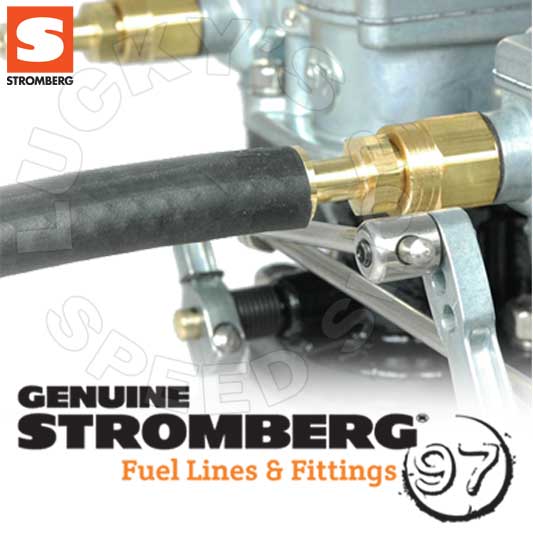

Stromberg Extended SuperSeat Hose Fitting


  • Extended length leaves gap for linkage on 6×2 linkages
  • Only brass hose end available with the correct 18 degree seat
  • Fits old Stromberg needle & seat, and new S-jet
  • Also fits 9564K-BIG S-jet (standard on BIG 97 carbs)
  • Tightens right into S-jet so no ugly threads showing
  • Perfect for 5/16in and 3/8in ID hose

10 in stock

Share this item with your friends!

SKU: 9080K-E Category:


An extended Superseat hose fitting, specially designed with a gap to clear forward facing 3×2 progressive linkages. Superseat fittings are the only brass hose ends available with the correct 18 degree seat for Stromberg inlets (original or S-jet). So no leaks and period looks too. Perfect for 5/16″ ID hose – but 3/8″ ID hose also clamps up great. They also fit 9564K-BIG S-jet (standard on BIG 97 carbs).

On a Stromberg 6×2 progressive linkage, the sliding rods on each bank must pull the front carbs open, because of clearance issues with the back-bar. This WAS a problem because the sliding rod (in the top adjustment hole) would rub on the underside of the center carburetor hose. You can’t move it to a lower hole because it’s taken by the link to the back-bar. And you can’t swap them or those back-bar links hit the back carb fuel inlet! 9080K-E simply moves the hose and clamp a little further out to leave a gap for the sliding rod to clear.

Additional information

Weight .6 lbs
Dimensions 9 x 6 x 1 in
