Description

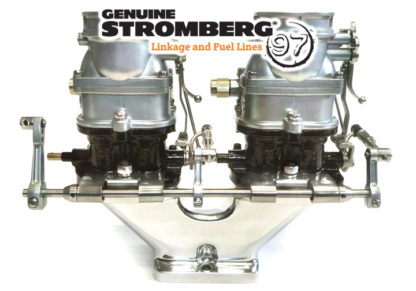

A specially developed 2×2 carburetor linkage for ‘side-by-side’ carburetor applications with spacing of 6-11/16 inches, measured between front mounting studs. If in doubt, simply measure your manifold spacing – throttle shaft to throttle shaft.
Comprises two stainless steel back-bar brackets with rolled ends and Oilite self-lubricating bushes, a stainless steel back-bar shaft with two end stops to prevent lateral movement, and two short levers with swivels and clamping screws. Two small washers are supplied to take up any height difference in the base castings.
Two stainless steel links with Stromberg Linkage Bombs clip the Back-bar onto the carburetors. The included Stromberg 9096K long lever can be positioned anywhere along the Back-bar shaft to align with your throttle pedal ‘pull’ point. Stromberg recommends a mechanical pedal link for all multi-carb systems.
Please note: This kit will not fit Holley, Ford or Edelbrock 94-style carburetors which have idle mixture screws on the back where the brackets fit.
The linkage comes pre-assembled, installs in just two simple steps and comes with full instructions. Click the other tabs for help with installation and tuning.
