Stromberg Progressive Linkage 5-3/16″ Chrome w Kickdown 9245PRO-CHR-KD

$220.95

  • 5-3/16 inches from carb to carb
  • Show chrome/polished stainless steel finish
  • Extended throttle shafts not required
  • Fits Edelbrock 1108 & 1109 3×2 intakes
  • Auto-trans kickdown lever
  • To use with banjo fittings, add 9086K spacers.

Available on backorder

SKU: 9245PRO-CHR-KD Category:

Description

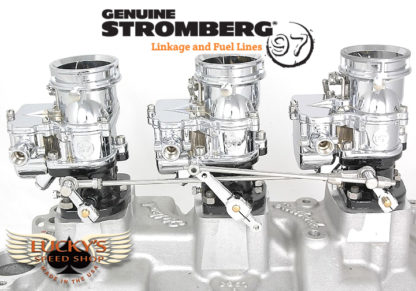

A premium 3×2 progressive carburetor linkage designed for optimum performance and versatility. Use on intakes with 5-3/16″ carb spacing. If in doubt, simply measure your manifold spacing – throttle shaft to throttle shaft.

Exclusive to Stromberg Speed Parts, this linkage features our ‘Snapback’ throttle return springs which virtually disappear from view. Special swivels and bolts clamp the rod ends tight, yet still allow full rotation. The small bolt has a blind hole, allowing you to insert eg, a hex key, to tighten the lock nut.

The extended center lever has a 1⁄4”UNF thread, which accepts the special fixing common to most (eg ‘Lokar®’) hot rod auto-trans kickdown cable kits. Stromberg KD linkages are designed to work with the Stromberg Cable Throttle Bracket (9136K).

The tapered rod stops are fully adjustable, with discreet set screw fixings and opposite threaded rod ends ensure easy adjustment. Just spin the secondary link rod to adjust for the correct lever angles.

The linkage comes pre-assembled, installs in just two simple steps and comes with full instructions. Click the other tabs for help with installation and tuning.

WARNING! To use this linkage with banjo fuel fittings, you must add our 9086K banjo fitting spacers to ensure safe clearance between the long lever and the fuel line. Always read the instructions before installation.

WARNING! Always check that your vehicle’s automatic transmission and kickdown cable are compatible with the Stromberg KD linkage. Different transmissions have specific kickdown requirements and incorrect set-up can result in transmission damage.

Every Stromberg TwoStep linkage kit comes with full instructions, and further help with selection, installation and tuning is available at our Tech Center.

Additional information

Weight 1 lbs
Dimensions 9 × 6 × 1 in
